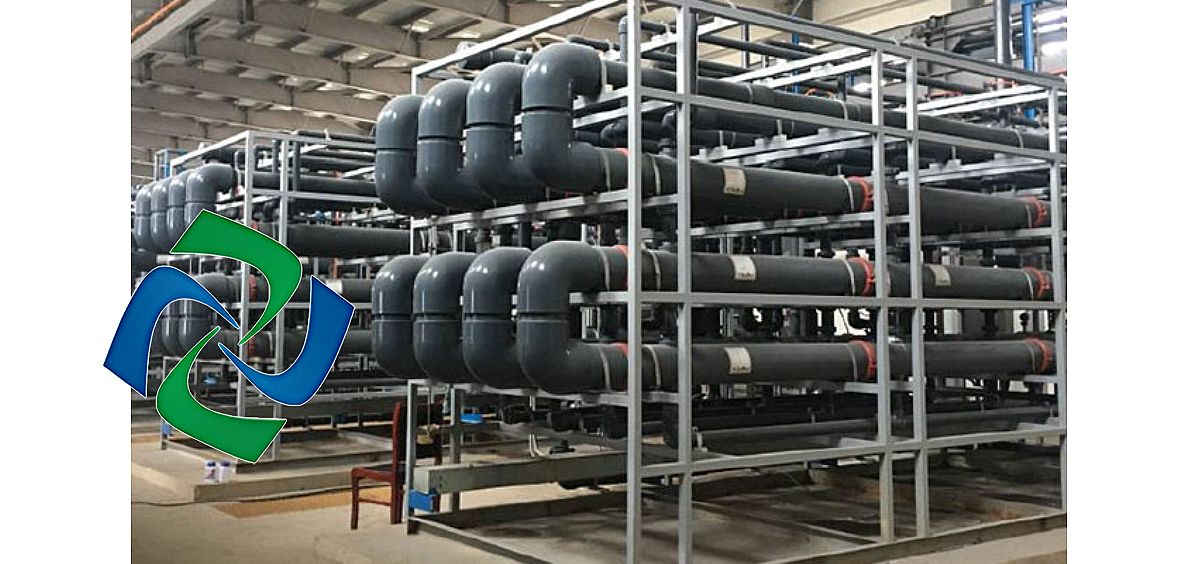

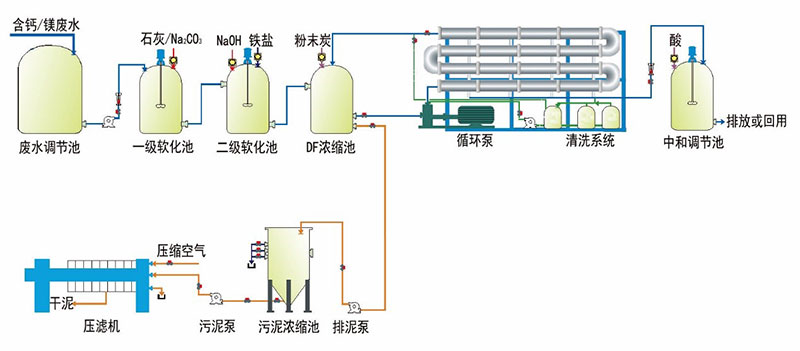

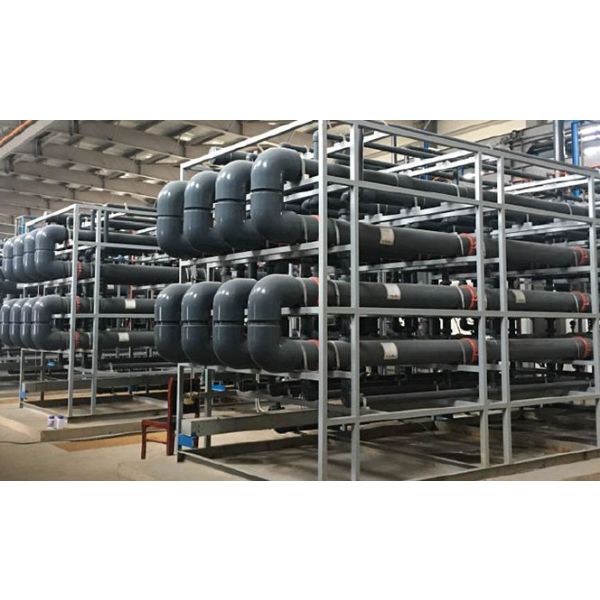

High Turbidity / Silicon Removal / Weight Removal / Softening Tubular Membrane Treatment Plant Treatment System Characteristics:
| Project indicators | Water Intake | Tubular membrane water |
| SS（ppm) | 〈10000 | 〈3 |
| NTU | -- | 〈1 |
| SDI | -- | 〈4 |
| Calcium / Magnesium ( ppm) | 2500 | 10-30 |
| Fluorine (ppm) | 〈50 | 5-10 |
| Copper ( ppm) | 30-300 | 5-10 |
| Silicon ( ppm) Heavy metals (copper/nickel, etc.) |
30-400 - |
2-10 0.05 |
| Serial number | Scale ( m³ / d ) | power | Main equipment size ( m*m*m ) |
| 1 | 100 | 11 | 7*1.5*2.5 |
| 2 | 150 | 15 | 7*1.5*2.5 |
| 3 | 200 | 22 | 7*1.8*2.5 |
| 4 | 300 | 27 | 7*1.8*2.5 |
| 5 | 400 | 30 | 7*2.2*3 |
| 6 | 500 | 35 | 7*2.4*3 |
